Equipamentos Termograficos

Includes 25 degree lens 320 x 240 resolution For a breakdown of 340 series part numbers, please click here Uses interchangeable lenses which the camera will automatically recognize and calibrate Fotric’s Magic Thermal algorithm enables advanced performance and complex diagnoses Magic Thermal simplifies identification of equipment failures, and will highlight specific areas while leaving unwanted areas in grey This model does not have a laser for distance and area measurement Built-in microphone for voice annotation Large 5" LCD screen to easily view results (1280 x 720) 13 megapixel digital camera

Includes 25 degree lens 384 x 288 resolution For a breakdown of 340 series part numbers, please click here Uses interchangeable lenses which the camera will automatically recognize and calibrate Fotric’s Magic Thermal algorithm enables advanced performance and complex diagnoses Magic Thermal simplifies identification of equipment failures, and will highlight specific areas while leaving unwanted areas in grey This model does not have a laser for distance and area measurement Built-in microphone for voice annotation Large 5" LCD screen to easily view results (1280 x 720) 13 megapixel digital camera

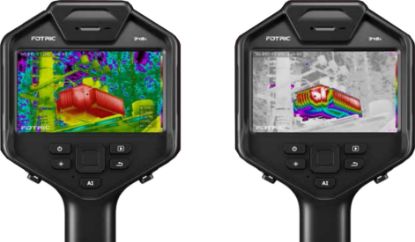

Includes 44º degree lenses 640 x 480 resolution For a breakdown of 340 series part numbers, please click here Uses interchangeable lenses which the camera will automatically recognize and calibrate Fotric’s Magic Thermal algorithm enables advanced performance and complex diagnoses Magic Thermal simplifies identification of equipment failures, and will highlight specific areas while leaving unwanted areas in grey Laser for accurate distance and area measurement Built-in microphone for voice annotation Large 5" LCD screen to easily view results (1280 x 720) 13 megapixel digital camera

• Resolução térmica: 128 x 96 • Sensibilidade térmica: 60mk (0,06 ° C) • Taxa de Actualização: 30 Hz • Intervalos de temperatura (2): -20 ° C a 120 ° C; 0 ° C a 550 ° C • Opção de lente / FOV / Modo de foco: 46.5°x 35° / IFOV: 6.44 mrad / 0.5m focus-free • Tela sensível ao toque de 3,5 polegadas • Câmara digital de nível industrial de 8 megapixels • Tecnologia de balanceamento de imagem TWB para inspeções mais intuitivas • Faixa inteligente estendida de -20 a 550 ° C - realize inspeções em mais setores • Controle de foco total para obter detalhes mais nítidos, alternando o foco para o foco manual

264 x 198 (w/ 49 degree lens) - fixed focus, wide angle lens Thermal Resolution: 264 x 198 Thermal Sensitivity: 40mk (0.04°C) Frame Rate: 30Hz Temperature ranges (2): -20°C to 120°C; 0°C to 550°C Lens option/FOV/Focus Mode: 49°x 36.8° / IFOV: 3.40 mrad / 0.5m focus-free 3.5in touch screen display and fast user interface 8-megapixels industrial-grade digital camera, always in focus, working distance as close as 0.5m Aim and shoot large scenes with a wide-angle lens - provides thousands of temp data in one image Extended -20 to 550°C intelligent range - perform inspections in more industries Detect mechanical, electrical, building hidden thermal abnormalities with enhanced images

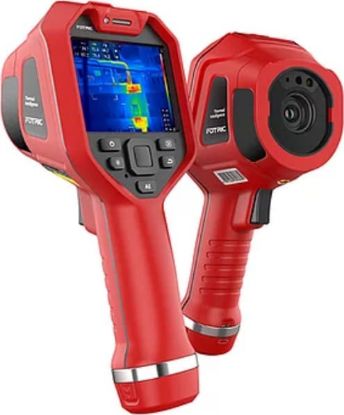

Thermal Imager 320x240 Fixed Focus, Wide Angle Lens (49 Degree) Thermal Resolution: 320 x 240 Thermal Sensitivity: 40mk (0.04°C) Frame Rate: 30 Hz Temperature ranges (2): -20°C to 120°C; 0°C to 550°C Lens option/FOV/Focus Mode: 49°x 36.8° / IFOV: 2.78 mrad / 0.5m focus-free 3.5in touch screen display and fast user interface 8-megapixels industrial grade digital camera, always in focus, working distance as close as 0.5m Aim and shoot large scenes with wide angle lens - provides thousands temp data in one image Extended -20 to 550°C intelligent range - perform inspections in more industries Detect mechanical, electrical, building hidden thermal abnormalities with enhanced images
