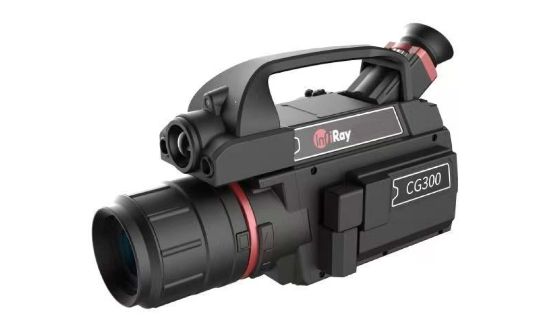

Model CG300F
Para Gases tipo ou como Termografia normal
SF6,NH3, ethylene, vinyl ether, chloroethylene,
trichloro ethylene, Methyl vinyl ketone, propylene , acrolein ,
vinyl cyanide, Ethyl cyanoacrylate, Allyl fluorine, allyl chloride,
allyl bromide, furan
Detector Type Cooled Infrared Detector
Detector Resolution 320×256
Pixel Pitch 30μm
Spectral Range 10.3～10.7μm
Image Frame 60Hz
Star-up Time ＜7min
Gas Sensitivity 0.001mL/s
Digital Image
Enhancement NUC, noise reduction filter, DDE, Gas Enhancement Mode
FOV standard：24°×18°，optional：14.5°×10.8°,12°×10°,6°×4.5°
Focus Mode Electric/Auto
Measurement Range -20～350℃
Measurement Accuracy
±1℃（0～100℃);
±2% of reading（-20～0℃ or ＞100℃）
Measurement Mode
Spot/area temperature measurement, auto tracing the
maximum spot; set the highest temperature, lowest
temperature ,isotherm, temperature difference; temperature
alarm available
Emissivity Calibration 0.01～1.0 changeable
Color Palettes 8
Digital Zoom 1~8×
Visual 500W（auto-focus，with a camera lamp）
Laser Pointer level 2，1mW/635nm red
Display 3.5-inch LCD， 640×480，rotatable
Viewfinder 0.39-inch OLED，800×600，rotatable
GPS Location data automatically added from built-in GPS
Video Output CVBS
Infrared Image Format JPEG（incl. temperature data）,IRG（incl. temperature data）
Infrared Video Format AVI（w/o temperature data）, IRV（incl. temperature data）
Memory Card SD card
Battery Type Rechargeable Li-ion battery
Operating Time ≥2h while running 24/7
Charging System Stand-alone battery charger, external power source
Operating Temperature -10～50℃
Storage Temperature -40～70℃
Operating Humidity 10%~95%, non-condensing
Encapsulation Rating IP54
Mounting Type Support tripod mounting
Para Gases
SF6,NH3, ethylene, vinyl ether, chloroethylene,
trichloro ethylene, Methyl vinyl ketone, propylene , acrolein ,
vinyl cyanide, Ethyl cyanoacrylate, Allyl fluorine, allyl chloride,
allyl bromide, furan
Link software
