Fotric 323F-L49 – Câmara termográfica 264x198, focagem fixa,Lente standard (lente angular de 49°)

264 x 198 (w/ 49 degree lens) - fixed focus, wide angle lens Thermal Resolution: 264 x 198 Thermal Sensitivity: 40mk (0.04°C) Frame Rate: 30Hz Temperature ranges (2): -20°C to 120°C; 0°C to 550°C Lens option/FOV/Focus Mode: 49°x 36.8° / IFOV: 3.40 mrad / 0.5m focus-free 3.5in touch screen display and fast user interface 8-megapixels industrial-grade digital camera, always in focus, working distance as close as 0.5m Aim and shoot large scenes with a wide-angle lens - provides thousands of temp data in one image Extended -20 to 550°C intelligent range - perform inspections in more industries Detect mechanical, electrical, building hidden thermal abnormalities with enhanced images
Manufacturer: Fotric
Call for pricing
Fotric 320F Series Compact Thermal Imagers - Ready-to-go, All-Purpose Inspection Tool

The Fotric 320F Series is a line of compact and affordable handheld cameras for facility maintenance use. Perform more inspections in more industries with the extended -20 to 550°C intelligent range. Industries include electric utilities, building inspection, manufacturing, R&D, oil/gas, petro chemical, metallurgy, and more.

With 40mk NETD, up to 320 x 240 IR resolution, FOTRIC 320F series thermal cameras achieve crisp imaging quality on its 3.5 inch LCD screen. Its built-in imaging algorithms also help to find equipment faults easier.

Fotric 320F Series Features:
  • Work in confined spaces, fit larger targets with 49° and 46° wide-angle lens options
  • Get as close as 0.5m from targets to capture more details
  • Powered with TWB image balancing technology
TWB image
TWB image
TWB image
  • High-quality reporting with one-click automatic reports via Fotric AnalyzIR software
  • Easy-sharing JPEG thermal pictures with temperature data embedded
  • On-device radiometric video recording
  • Transfer images in seconds via Wi-Fi or memory card (64 GB)
  • Enriched inspection results
  • Add important written noted to videos and pictures; Record and listen to voice annotation
  • IP54 enclosure rating, 2 meters-drop tested
  • Technology-assisted inspections to spot problems faster to reveal hidden details (Touch scale)
TWB image
TWB image
  • Get deeper insights of complex analyses with multiple ‘Regions of Interest’ on screen
  • 8 palettes - grey, iron, rainbow, grey-red, glowbow, medical, prism
  • Images modes - thermal, visible light, picture-in-picture, image fusion
  • Region of interest measurement tools - Spot (6), Line (1), Rectangle/Circle (4)
  • WiFi and Bluetooth for data transfer and headset use
  • GPS enabled to provide geographic info on thermal images
  • Responsive 3.5in LCD touch screen and fast user interface
  • Light-weight, compact design that fits in any toolbox or overall pocket
TWB image
TWB image
TWB image

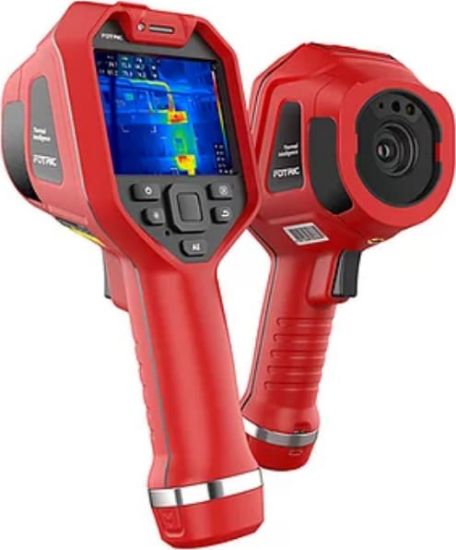

Fotric 323F-L49

Fotric 323F is a compact and affordable handheld thermal camera for facility maintenance use. Its 264 x 198 resolution, 40mk sensitivity, 0.5 meters focus-free feature, and the Android platform interface provide users intuitive experiences to get you started. This camera is equipped with a 49° wide-angle lens to meet requirements from different industries, like building inspection and manufacturing. After inspection, you can import the data into AnalzyIR software with WiFi and generate reports with one click.

Here is a breakdown of the core parameters of the models in the 320F Series:

 Fotric 325FFotric 323FFotric 322FFotric 321F
Thermal Resolution320x240264x198160x120128x96
Super Resolution (SR)640x480528x396320x240256x192
Thermal Sensitivity (NETD)40mk (0.04°C)40mk (0.04°C)40mk (0.04°C)60mk (0.06°C)
Lens Option (not interchangeable)49°x36.8°49°x36.8°46.5°x35°46.5°x33°
IFOV (spatial resolution)2.78mrad3.40mrad5.15mrad6.44mrad
Focal Lengthf7.5f7.5f3.3f3.3
Minimal Focus Distance0.5m0.5m0.5m0.5m
